Circular MIL-DTL-26482 Series Ⅱ Connector .MS3476W22-55P.55 Female Pins.Straight Plug.Olive Drab Cadmium
Part Number:MS3476W22-55P
Product Description:
MIL-DTL-26482 Series Ⅱ is a type of crimp contact designed to meet the requirements of the military standard. It features a straight plug gender and is rated for a voltage of 500V. This product is an Narrow flange receptacle with an olive drab cadmium plated finish, meeting the MS3476 specification. MIL-DTL-26482 Series Ⅱ is designed to provide reliable electrical connections, and is ideal for use in harsh, demanding environments such as military and aerospace applications. It is a rugged, reliable, and cost-effective connector system that is built to last. MIL-DTL-26482 Series Ⅱ is the perfect choice for any application requiring superior performance and reliability.
Features:
- Product Name: MIL-DTL-26482 Series Ⅱ
- Contact Finish: Gold
- Gender: Straight Plug
- Connector Type: Circular
- Voltage Rating: 500V
- Straight Plug
- Olive drab cadmium plated
- Environmental sealing
- Vibration proof
Technical Parameters:
| Parameters | Values |
| Product Name | MIL-DTL-26482 Series Ⅱ |
| Connector Type | Circular |
| Contact Type | Crimp |
| Gender | Straight Plug |
| Number of Contacts | 55 |
| Voltage Rating | 500V |
| Current Rating | 7.5A |
| Contact Finish | Gold |
| Finish | Olive Green Cadmium |
| Operating Temperature | -55°C To +125°C |
| Part Number | MS3476W22-55P |

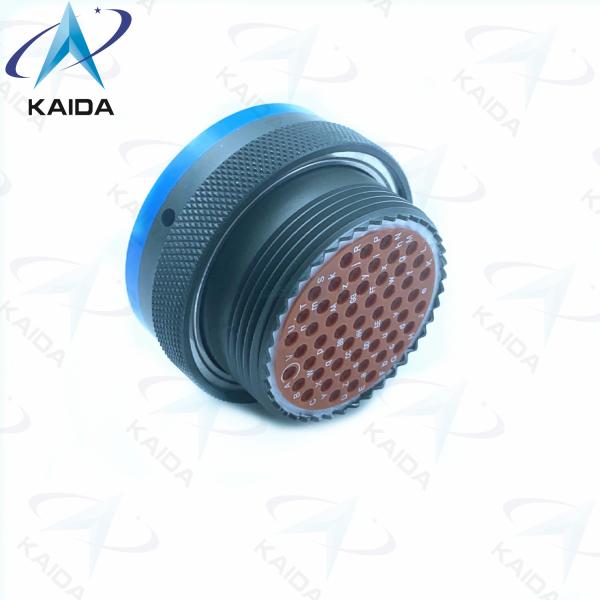

Product Pictures
Applications:
KAIDA MS3476W22-55P MIL-DTL-26482 Series Ⅱ is a narrow flange receptacle with 55 contacts. It can be used in a variety of applications and scenarios with a voltage rating of 500V and a current rating of 7.5A. It meets the MIL-DTL-26482 series Ⅱ standard and is widely used in military, aerospace and other industries. It is designed to withstand temperatures of -55°C to +125°C, making it ideal for extreme conditions. The product is well made and highly reliable, and provides superior performance even in the harshest environments. KAIDA MS3476W22-55P MIL-DTL-26482 Series Ⅱ is an excellent choice for any application where durability and reliability are key.
Customization:
MIL-DTL-26482 Series II: MS3476W22-55P
- Brand Name: KAIDA
- Model Number: MS3476W22-55P
- Place of Origin: China
- Product Name: MIL-DTL-26482 Series II
- Number of Contacts: 55
- Current Rating: 7.5A
- Connector Type: Circular
- Gender: Straight Plug
Support and Services:
MIL-DTL-26482 Series II Technical Support and Services
MIL-DTL-26482 Series II is supported by a comprehensive range of technical support and services, including:
- A dedicated customer support team to assist with any questions or technical concerns
- Technical advice to ensure the application of the correct product for the specific application
- Design support for custom applications
- Ongoing product development and improvement
- Regular product updates and notifications
- Comprehensive library of technical documents and resources
Packing and Shipping:
MIL-DTL-26482 Series Ⅱ Packaging and Shipping:
The MIL-DTL-26482 Series Ⅱ connectors shall be packed and shipped in accordance with the Anti-Static and ESD requirements of MIL-STD-1686 and MIL-STD-2073.
The MIL-DTL-26482 Series Ⅱ connectors shall be packed and shipped in accordance with MIL-STD-130.
The MIL-DTL-26482 Series Ⅱ connectors shall be packaged in boxes, trays, or other appropriate containers that are designed for shipping.
The MIL-DTL-26482 Series Ⅱ connectors shall be labeled with the manufacturer’s name, the part number, and the date of manufacture.
FAQ:
Q1: What is MIL-DTL-26482 Series Ⅱ?
A1: MIL-DTL-26482 Series Ⅱ is a cylindrical connector manufactured by KAIDA, with model number MS3476W22-55P. It is made of high-grade materials and originates from China.
Q2: What is the purpose of MIL-DTL-26482 Series Ⅱ?
A2: MIL-DTL-26482 Series Ⅱ is designed to provide a secure connection between two components or machines. It is commonly used in aerospace, automotive, and military applications.
Q3: What materials is MIL-DTL-26482 Series Ⅱ made of?
A3: MIL-DTL-26482 Series Ⅱ is made of high-grade materials, including aluminum alloy and nylon.
Q4: What types of applications is MIL-DTL-26482 Series Ⅱ typically used for?
A4: MIL-DTL-26482 Series Ⅱ is typically used in aerospace, automotive, and military applications. It is also suitable for harsh environments and high-vibration applications.
Q5: Does MIL-DTL-26482 Series Ⅱ come with any certifications?
